I've bolted together more of these kits than I can count, and the good news is this: assembling a DIY train horn for the Milwaukee® 18v battery is a 20-minute job with hand tools, not a wiring project. There's no air tank to plumb, no compressor to hard-mount, no fuse taps. I'll walk you through exactly how I do it on the bench so yours seals tight and blows full 140 dB on the first pull.
What you're actually building
The whole point of an M18-compatible train horn is that the compressor, the battery mount and the electronics all live in one handheld body. You aren't gutting a drill or splicing into anything. The DIY Quad Train Horn for the Milwaukee® 18v battery ships as a handful of parts that you join together: the compressor unit that clips onto a Milwaukee® M18™ pack, the four-trumpet horn cluster, the air hose between them, and the harness with the wireless remote receiver. Put those four things together correctly and you've got a portable horn that records at 140 dB and fires from a remote up to 160 ft away.
"DIY" here means final assembly, not fabrication. If you can use a screwdriver and wrap a fitting with tape, you can finish this kit. The only thing I'd add to the box before you start is a roll of PTFE thread tape and a set of ear protection — more on both below.
What's Included

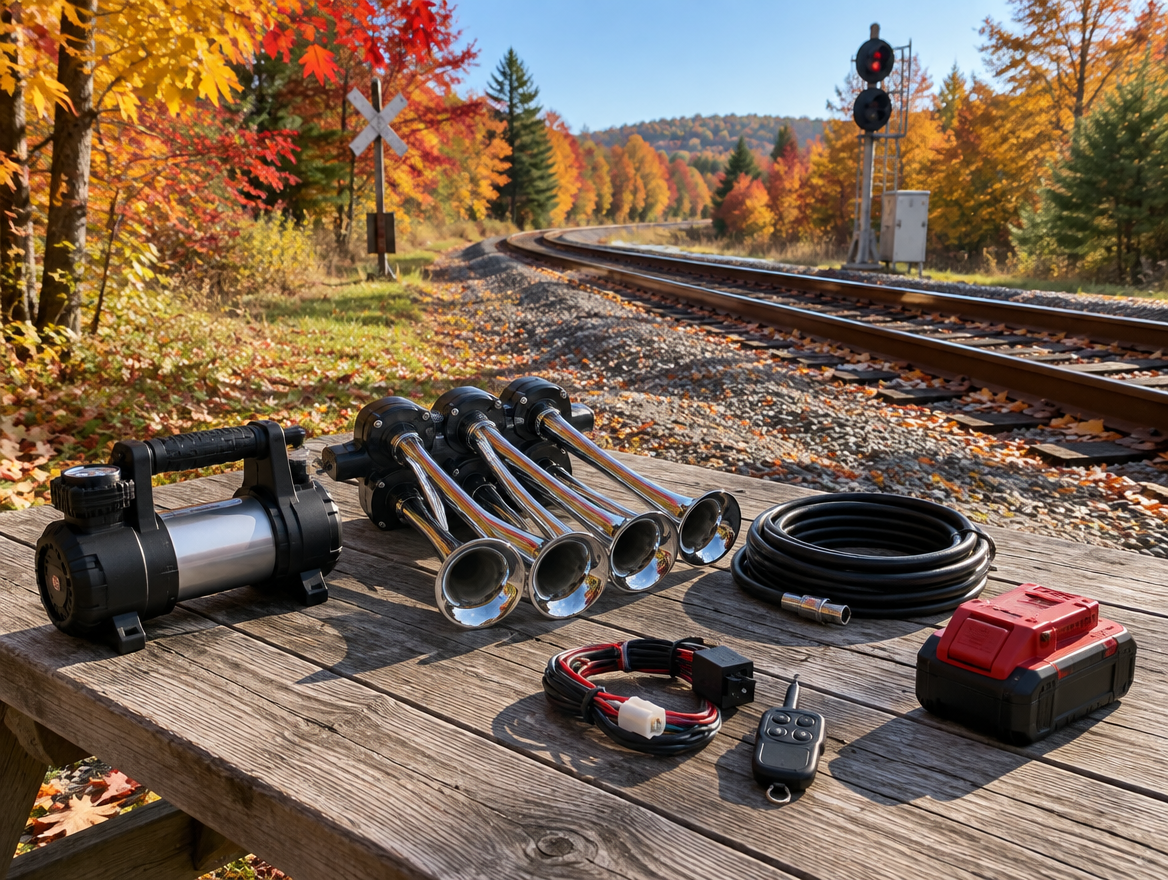

Before you touch a tool, lay everything out and confirm the kit is complete. Here's what comes in the DIY Quad Train Horn for the Milwaukee® 18v battery:
- Air horn assembly — four trumpets on a shared manifold (premium trumpet upgrade available if you want a deeper tone).
- High-performance air compressor — the handheld body that runs off the M18™ pack.
- Harness with remote receiver — pre-built, ready to plug in.
- Wireless remote control — rated to operate from up to 160 ft away.
- Air hose — connects the compressor outlet to the trumpet inlet.
- Mounting hardware — 2 screws for bolting the trumpets down.
- Trigger button — for manual operation if you'd rather not use the remote.
One thing the kit does not include is the battery. It runs on any Milwaukee® M18™ pack — a 2.0Ah will fire it, but I run a 5.0Ah for more blasts per charge. Buy the battery separately or use one off your shelf.
Step by step: putting the kit together
I do every one of these the same way, in the same order. Skipping around is how you end up chasing an air leak later.
- Inventory and dry-fit. Lay all the parts on the bench and loosely thread the air hose onto the compressor outlet and the trumpet manifold by hand. No tape yet — you're just confirming the threads match and nothing's cross-threading.
- Mount the trumpets. The four-trumpet cluster bolts to its bracket with the 2 included screws. Snug them down so the horns can't rattle loose under vibration, but don't crank hard enough to crack the housing.
- Tape the air fittings. Back the hose off, wrap the male threads with PTFE tape (I'll cover exactly how in the next section), and thread the hose into the compressor outlet and the trumpet inlet. This is the single most important step for a leak-free horn.
- Connect the harness and receiver. Plug the pre-built harness with the remote receiver into the compressor. It's keyed, so it only goes one way. Route the wire so it isn't pinched between the body and the battery.
- Attach the manual trigger. If you want the option to fire it by hand, connect the trigger button now. I leave it on even when I run the remote — it's a useful backup.
- Clip on the M18™ battery. Slide a charged Milwaukee® M18™ pack onto the foot of the compressor until it clicks. That's your power source — no wiring, no ground strap.
- Leak-check before the full blast. Tap the trigger for a half-second so the compressor pressurizes the line, then listen and feel around every fitting for escaping air. Silence means you're sealed.
- Full test — with ear protection on. Once it's sealed, give it a full blast outdoors. You should get the deep, layered note of all four trumpets at once.
That's the entire build. The reason it's this short is the engineering: the compressor and battery mount are already integrated, so your job is joining four parts, not building a system from scratch. If you want the comparison between doing this yourself and buying it pre-built, I broke that down in DIY vs pre-assembled.
Sealing the air fittings so it doesn't leak
Nine out of ten weak or wheezy horns I'm sent to diagnose come down to one thing: a bad seal at a threaded air fitting. Air takes the path of least resistance, and a fitting that's a quarter-turn short will bleed off pressure the trumpets needed. Here's how I seal them every time:
- Use PTFE thread tape, not guesswork. Wrap the male threads about 2 to 3 turns, in the same clockwise direction the fitting tightens, starting a thread or two back from the leading edge. That keeps the tape from peeling as you thread it in.
- Don't double up sealants. Tape or paste — not both. Layering them distorts the threads and can actually cause the leak you're trying to prevent.
- Hand-tight, then a couple turns — no more. Tapered air threads seal by wedging together, so thread the fitting finger-tight, then add roughly 1.5 to 3 wrench turns. Over-tightening is the leading cause of leaks and cracked fittings, not the fix for them.
- Then pressure-test. Tap the trigger, listen, and run a wet finger or a little soapy water around each joint — bubbles point straight to the leak.
Do this part patiently and the horn hits its rated output. Rush it, and you'll spend twice as long hunting for the hiss.
Pairing the remote and the first real blast
The wireless remote receiver comes wired into the harness, so once the harness is plugged into the compressor, the remote is already talking to the horn — there's no app or pairing dance. Stand back, hit the button, and confirm it fires. The remote is rated to work from up to 160 ft line-of-sight; walk it out across the yard and you'll find the real-world range drops if you've got a metal building or a vehicle body between you and the receiver.
Now the safety part, because 140 dB is not a number to be casual about. The CDC's NIOSH program sets the recommended workplace noise limit at 85 dBA averaged over an 8-hour day, and caps impulse noise at a 140 dB peak ceiling — and our horn lives right at that ceiling. Wear hearing protection any time you test it, and never fire it near another person's head. Loud is the whole point of this thing; treat it with the same respect you'd give a firearm at the range.
If 140 dB isn't enough and you want the top of the lineup, the assembly principles are identical on the louder models — the Extreme Quad Train Horn for Milwaukee® 18v Battery pushes past 150 dB and goes together the same way, just with a heavier compressor and upgraded trumpets.
FAQ
Do I need any special tools to assemble the kit?
No. A screwdriver for the two trumpet screws and a small wrench for the air fittings cover it. The only consumable I add is a roll of PTFE thread tape, which costs a couple of dollars at any hardware store. No soldering, no drilling into a vehicle, no electrical work.
Which Milwaukee® M18™ battery should I use?
Any genuine Milwaukee® M18™ pack fits the compressor foot. A 2.0Ah works fine for occasional use; I run a 5.0Ah because it gives more blasts between charges. The kit ships without a battery, so use one you already own.
How do I know if my fittings are sealed?
Pressurize the line with a quick tap of the trigger, then run soapy water around each threaded joint. Bubbles mean a leak — back the fitting off, re-tape it, and re-seat it hand-tight plus a couple of wrench turns. A sealed horn fires at full volume; a leaky one sounds weak or breathy.
Can I mount it on my truck after I assemble it?
Yes — once the kit is built and tested on the bench, mounting it on a vehicle is a separate job. I walk through bracket placement and keeping the battery dry in my guides on mounting it on a truck and weatherproofing the M18 pack.
Why isn't my newly built horn as loud as expected?
Almost always an air leak at a fitting, or trumpets that weren't fully threaded onto the manifold. Re-check every threaded joint with the tape-and-test method above before you assume anything's wrong with the compressor. Nine times out of ten, it's the seal.
