I've strapped a Train Horn for Milwaukee® 18v Battery to just about every flat surface a truck owns, and the spot that keeps winning isn't the bed floor or the bumper — it's up on the rack. Six feet of height does more for how far the sound carries than any trumpet upgrade, and because these horns run off an M18™ pack with a wireless remote, the install is a clamp job, not a wiring job. Here's the height, weight, and placement math I actually ran before bolting mine down.
Why Rack Height Is the Cheapest Range Upgrade You Can Make
Sound is line-of-sight cargo. Highway noise-barrier engineering — the concrete walls you see along interstates — works on one principle: block the straight line between the source and the listener. Per the Caltrans technical noise analysis used in highway design, a barrier that just barely blocks line of sight cuts roughly 5 dB, and every extra meter of barrier above that line takes off about 1.5 dB more. Now run that logic in reverse. A horn buried behind a bumper or under a bed rail is fighting your own truck's sheet metal, the car in front of you, brush, fences, and terrain. Lift the same horn above the cab line and all of those obstacles stop clipping the sound. Same trumpets, same battery, same dB at the source — noticeably more reach where it matters.
Height doesn't change the physics of distance, though. The sound still drops about 6 dB every time you double the range — I broke that down with real numbers in my post on how train horn decibels fall off over distance. What height buys you is a clean, unobstructed launch angle so you actually get the range the inverse-square law allows, instead of losing an extra chunk to whatever's parked between you and the listener.
Weight Math: This Is Not a Rooftop Tent
Rack capacity anxiety is the first question I get, and it's the easiest to kill with numbers. A Yakima OverHaul HD bed rack is rated for 500 lbs on-road, 300 lbs off-road, and 800 lbs parked. Typical roof crossbars run up to 600 lbs static, with dynamic (driving) ratings around 165 lbs — and even that lower number is the constraint your rooftop-tent friends worry about, not you.
Here's what the horn side of the scale looks like. The Dual-series horn body is listed at 3.4 lbs with a footprint of 14" x 6" x 9". A Milwaukee® M18 XC5.0 battery adds 1.8 lbs. Call the whole rig roughly 5 lbs mounted — about the weight of a small tool bag. Bolting one to a rack consumes around 3% of a typical crossbar's dynamic rating and about 1% of a bed rack's on-road rating.
| Load | Rating / weight |
|---|---|
| Yakima OverHaul HD bed rack (on-road) | 500 lbs |
| Yakima OverHaul HD bed rack (off-road) | 300 lbs |
| Typical roof crossbars (dynamic, driving) | ~165 lbs |
| Dual-series horn body | 3.4 lbs |
| Milwaukee® M18 XC5.0 battery | 1.8 lbs |
That math holds across the whole lineup of train horns for the Milwaukee® 18v battery — dual, quad, or five-trumpet, you're adding tool-bag weight, not cargo weight. The one thing to respect: crossbar ratings drop when the bars are close together (Yakima cuts ratings 40% below a 36" spread), so if your bars are tight, mount the horn over a bar, not between them.
Height Check: Will You Still Clear the Garage?
Before you build up, know your ceiling. The federal standard for interstate vehicle height is 13 feet 6 inches, set by the Surface Transportation Assistance Act, and states run from 13'6" to 14' — the FHWA's size regulations report has the breakdown. A pickup with a mid-height bed rack sits nowhere near that, so legality isn't your problem. Clearance is. Parking garages commonly cut off around 7 feet, and drive-throughs aren't much taller.
Measure your truck's tallest point with the horn mounted, write the number on a sticky note, and put it on your dash for the first month. On my F-250 with a cab-height bed rack, the trumpets add about the same height as a mounted spare — I clear my shop door with room, but I stopped even attempting parking garages years ago. If you're on a lifted rig with a full-height roof rack, mount the horn on the side of the rack basket rather than on top: you keep the height you already learned to live with, and the trumpets still sit above the cab line where they can breathe.
How I Mount It: No Wiring, and No New Holes
This is where the battery-powered design earns its keep. A traditional 12V train horn kit on a roof rack means running compressor power, air line, and a switch wire from the roof, through a grommet, to your battery and dash — the kind of install that eats a whole weekend. A train horn for the Milwaukee® 18v battery needs none of it: the battery rides on the horn, and the trigger is a wireless remote. The whole install is mechanical.
My rack-mount routine, refined over a few dozen installs:
- Clamp, don't drill. Racks are pre-made mounting real estate — square tube, round tube, or slotted extrusion. Heavy rubber-lined tube clamps or U-bolts with rubber isolation grab any of them. I covered the full hardware list in my no-drill mounting guide.
- Trumpets forward, with a slight downward tilt. Forward-facing gets the sound where you're aiming; a few degrees of down-tilt keeps rain from pooling in the bells.
- Battery latch faces where your hand can reach. You'll pull the pack for charging and for overnight security. Mount so the release is reachable from the bed or a tire step, not dead center of the roof.
- Isolate the metal. A strip of bicycle inner tube between horn bracket and rack kills rattle and protects both powder coats.
- Torque check at one week. Clamped joints settle. One re-tighten after the first wash-and-drive cycle and mine have never moved since.
For a rack mount specifically, I run the Extreme Quad Train Horn for Milwaukee® 18v Battery — up to 150 dB out of four powder-coated metal trumpets, and it ships with a long-range remote rated up to 2000 ft on top of the standard one. Up on a rack with clear line of sight, that remote range is the difference between a horn you trigger from the driver's seat and one you can fire from the far end of a campsite or across a jobsite yard.
Bed Rack vs. Roof Rack: Which One I'd Pick

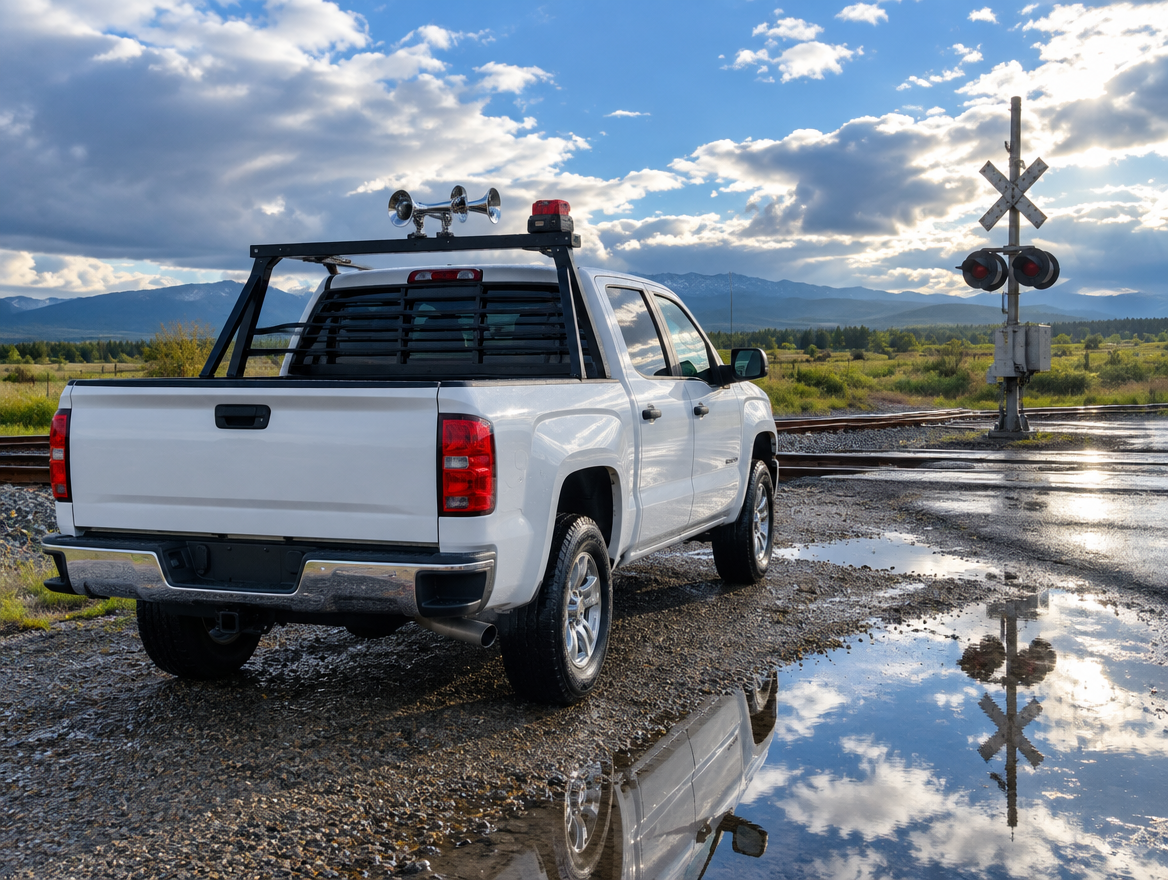

Both beat a bumper mount. If you have both, here's how I split the decision. The bed rack wins on access — you can reach the battery from the ground or the tailgate, the horn sits behind the cab where it picks up less windshield-height bug spray and road grit, and cab-height bars already put the trumpets above most line-of-sight clutter. The roof rack wins on pure projection — nothing in front of the trumpets in any direction — and it's the only option on an SUV. The trade-offs: roof mounting means a step stool or tire step every time you pull the battery, and it adds wind noise if the trumpets sit ahead of a fairing. On my own trucks the horn lives on the bed rack; on my buddy's 4Runner it lives on the side of the roof basket, and neither of us has ever wished for the wired alternative.
One weather note that applies to either spot: these horns are water-resistant, not waterproof. Rain and highway spray are fine; if you're headed into a week of sideways storms or a submarine-depth water crossing, pull the horn — it's four clamp bolts or a quick-release plate, not a wiring harness. My full outdoor-exposure setup is in the weatherproof mounting guide.
FAQ
Does mounting higher actually make the horn louder?
Not at the source — a 150 dB horn is a 150 dB horn on the tailgate or on the roof. What height changes is how much of that sound survives the trip. Obstacles that block line of sight cost real decibels (that's the entire working principle of highway noise walls), and a rack mount lifts the trumpets above most of them.
Do I need to run any wires through the roof or cab?
No. The battery mounts on the horn itself and the trigger is wireless — standard remote up to 160 ft, long-range remote up to 2000 ft on the Extreme series. The entire install is clamps and brackets. That's the whole reason this style of horn skips the multi-hour install that a compressor-and-tank roof kit demands.
Will five pounds up high hurt my handling or my rack?
No meaningful effect on either. Rooftop-tent guys worry about 130+ lbs against a 165-lb dynamic crossbar rating; you're adding about 5 lbs including the battery. Subtract it from your rack's rated capacity like any other cargo and move on.
Can I leave it mounted in the rain?
Yes, with the trumpets angled slightly down so water can't sit in the bells. The horns are water-resistant, not waterproof — normal weather is fine, but pull the unit for pressure washing or extended storms. I also pull the battery overnight in freezing weather, since cold-soaked packs give up some punch.
Should I take the horn off when parking in public?
I pull the battery, which takes five seconds and makes the horn useless to a curious passerby. If the truck sits on the street overnight, a quick-release mounting plate lets you bring the whole unit inside just as fast.
Rack mounting is the rare mod where the easy way is also the right way: no holes, no wires, five pounds of hardware, and more usable range than any trumpet swap will buy you. Loud is a feature — install it right. — Cole
