I've bolted train horns onto trucks I own — and strapped them onto trucks I don't. If your pickup is leased, or you flat-out refuse to put holes in a bed you paid this much for, this guide is for you. I tested three no-drill ways to mount a Train Horn for Milwaukee® 18v Battery — straps, magnets, and clamps — on my own truck, my side-by-side, and a buddy's leased F-150. Here's what held, what slid, and what I'd actually trust on a washboard road.
Why a Battery Horn Is the Easiest No-Drill Horn You Can Run
Traditional train horn kits fight you from the start: an air tank, a compressor, an air line, and a wiring run to the battery. Even the "bolt-on" kits assume you're okay putting hardware through the frame or the bed floor. A train horn that runs on a Milwaukee® M18™ battery skips all of that. The battery clicks onto the horn, the wireless remote lives in the cab (mine reaches across a big parking lot — the spec on my unit is up to 2000 ft), and the horn itself is one self-contained unit you can set anywhere.
That last part is the whole trick. Because there's no air line or wire leaving the horn, "mounting" just means holding one compact unit still. You don't need a drilled bracket for that. A strap, a magnet base, or a clamp will do it — and all three come off without a trace when the lease is up.
The unit I use for testing is the Extreme Quad Train Horn for Milwaukee® 18v Battery — the 150+ dB tier. Everything below applies equally to the Dual (130 dB) and Quad (140 dB) models; they're the same style of self-contained unit, just with different trumpet counts.
Method 1: Straps — My Default for Truck Beds and Racks
Straps are where I tell most people to start. They're cheap, they don't care what your bed is made of, and they leave zero marks if you pad the contact points.
Two kinds matter here, and they are not interchangeable:
- Cam-buckle straps. You pull them tight by hand and a spring-loaded cam holds the tension. Typical 1-inch cam straps carry a working load limit in the 500–1,000 lb range — far more than a horn needs — and because you can only tension them as hard as you can pull, you won't crush anything. This is what I use directly on the horn.
- Ratchet straps. The ratchet gives you mechanical advantage, which is exactly why I don't put one directly across a horn body: it's easy to over-tighten. Ratchet straps earn their keep when you're strapping a mounting board or crossbar down first and attaching the horn to that.

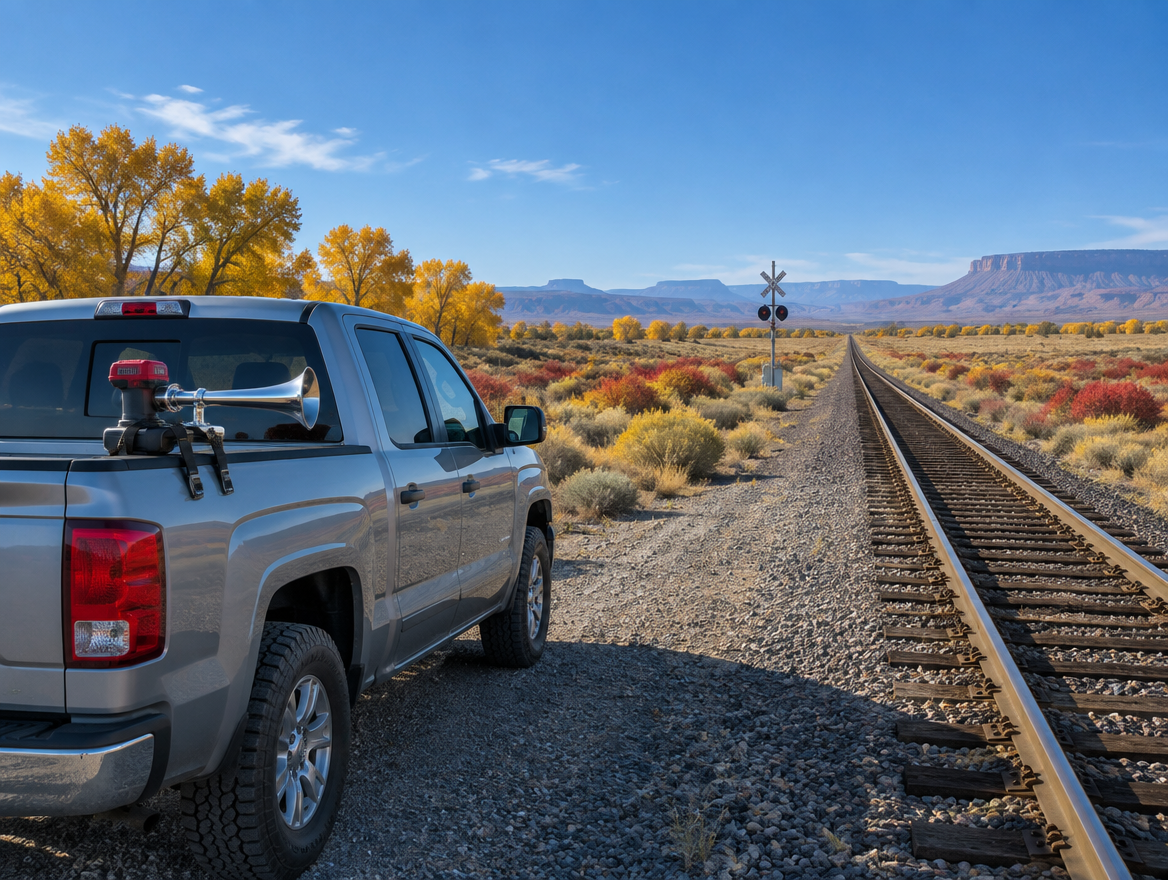

My truck-bed setup takes about four minutes: I set the horn against the front bed wall behind the cab (trumpets facing forward or up), run one cam strap through the horn's handle or bracket and down to the factory bed tie-down anchors, then a second strap the other direction so it can't walk sideways. Cross the straps and the horn can't move in any axis. A strip of rubber shelf liner or a folded moving blanket under the horn kills rattle and protects the bed liner.
Two rules I learned the hard way: snug is enough (check tension after your first drive — new webbing settles), and keep the strap off the trumpet bells. Squeeze a trumpet out of round and you change the sound. The horn should hang from its frame or handle, never from the trumpets.
Method 2: Magnets — Fast, but Know Your Metal First
Magnetic bases are the fastest no-drill option there is: slap it down, done. But magnets come with fine print that the marketing photos skip, so here's the honest version.
First: will a magnet even stick to your truck? If you drive a 2015-or-newer Ford F-150 or a Super Duty, the body and bed are aluminum — magnets will not grip them at all. The frame underneath is still steel, but that's not where you want a horn. Most GM and Ram bodies are still steel, and steel bumpers, headache racks, and toolboxes all work. Test with a fridge magnet before you buy anything.
Second: derate for vertical surfaces. Magnet pull ratings are measured pulling straight away from thick, flat, bare steel. Mount that same magnet on a vertical surface where gravity is trying to slide it down the panel, and the usable holding force drops to roughly 30% of the rated number. Paint, bed liner, dirt, and panel curvature all cut it further. My rule: whatever the horn weighs with a battery on it, I want magnet capacity of at least ten times that after the vertical derate — and on anything that sees washboard or potholes, magnets are my third choice, not my first.
Third: buy rubber-coated. Rubber-coated mounting magnets grip better because the rubber adds friction against sliding, and they won't scratch your paint the way a bare steel cup will. That's the difference between a magnet base you can put on a fender and one you can't.
Where magnets genuinely shine: temporary flat-surface setups. A steel toolbox lid, a steel headache rack, the deck of a steel trailer, farm equipment. I keep a magnet-based setup for moving one horn between tractors and implements around a friend's ranch — thirty seconds per machine, no tools.
Method 3: Clamps — The Off-Road Answer
If your rig has round tube anywhere — UTV roll cage, Jeep sport bar, bed rack, chase rack — tube clamps are the most secure no-drill mount of the three. These are the same clamps the off-road world already uses for light bars and whip flags: two halves that bolt around the tube with a rubber liner inside, giving you a flat tab or stud to bolt the horn's bracket to.
Off-the-shelf clamp mounts cover tube diameters from about 0.75" up to 2.5", which spans nearly every factory UTV cage and aftermarket rack out there. Measure your tube OD with calipers first — a clamp that's even an eighth inch oversized will rotate under vibration no matter how hard you crank it.
My side-by-side setup uses two clamps on the rear cross-tube of the cage, spaced to match the horn's bracket holes. Two clamps, not one: a single clamp becomes a pivot point, and a horn bouncing on a pivot point will loosen itself on the first rough trail. With two, the horn sat rock solid — I've since run it through a full season of desert trails without re-torquing.
For truck beds without any tube, there's a clamp answer too: rail clamps that grip the bed rail lip, the same no-drill style sold for mounting toolboxes and bed accessories. They clamp the underside of the rail flange, so nothing gets drilled and the bed rail cap hides any contact marks.
Which No-Drill Method Fits Your Vehicle
| Vehicle / surface | Best method | Why |
|---|---|---|
| Leased pickup, bed mount | Cam straps to factory tie-downs | Zero marks at turn-in; anchors are already there |
| Aluminum-body truck (F-150 2015+) | Straps or rail clamps | Magnets won't stick to aluminum panels |
| UTV / side-by-side / Jeep | Tube clamps on the cage | Strongest hold for constant vibration |
| Steel toolbox, headache rack, trailer deck | Rubber-coated magnet base | Fastest on/off; flat bare-steel-friendly surface |
| Farm equipment, moves machine to machine | Magnet base or single cam strap | Tool-free transfer in under a minute |
| Boat or RV | Straps to existing rails/cleats | No holes in gelcoat or sidewall; corrosion-safe |
And remember the zero-mount option: these horns work handheld. If you only need the horn occasionally, skip mounting entirely and keep it behind the seat with the remote clipped to the visor.
FAQ
Will a strap or clamp mount make the horn quieter than a bolted mount?
No. Loudness comes from the trumpets and the horn's own power, not from what it's attached to. What matters is aim — keep the trumpet openings unobstructed and pointed where you want the sound to go, and don't let a strap flatten a trumpet bell.
Can I leave a strap-mounted horn outside in the rain?
The horn hardware handles weather better than the battery does. My practice: mount the horn where water can drain away from the trumpet openings, and pull the M18™ pack (or cover it) in serious weather. Straps themselves should be checked seasonally — UV eventually chalks the webbing.
How much magnet do I actually need?
After the vertical derate (figure roughly 30% of the rated pull on a vertical painted panel), I want at least ten times the loaded weight of the horn in remaining capacity. In practice that means buying the big rubber-coated bases, not the hardware-store cups — and still testing with a hard yank in every direction before the first drive.
Will any of this void a lease or leave marks?
Cam straps on factory tie-down anchors leave nothing. Rubber-lined clamps and rubber-coated magnets leave nothing if you keep grit from getting trapped under them — wipe the surface before mounting, and check under the mount every few weeks.
Is the DIY kit harder to mount without drilling?
No — the DIY Quad Train Horn for Milwaukee® 18v Battery assembles into the same kind of self-contained unit, so every method above applies to it the same way.
Straps for beds, clamps for cages, magnets for bare steel — pick by surface, not by hype, and check your tension after the first drive. Loud is a feature — install it right. — Cole
