Quick-Release Mount for a Train Horn for Milwaukee® 18v Battery: One Horn for Your Truck, Boat, and UTV

I run one horn across three vehicles: my truck during the week, my side-by-side on weekends, and my buddy's bass boat whenever he lets me aboard. A Train Horn for Milwaukee® 18v Battery makes that possible because nothing is wired in. Here's the quick-release setup I actually use, what each vehicle needs, and the mount types I tried and threw out.

Why one battery horn can serve three vehicles

A traditional train horn kit is married to one vehicle. The compressor bolts to the frame, the tank bolts somewhere else, air line runs between them, and a relay and fuse tie it all into the vehicle's electrical system. Moving that kit to a boat is a weekend project, not a swap.

A horn that runs on a Milwaukee® M18™ battery is one self-contained unit. The pack clicks into the horn, the remote rides in your pocket, and no wire or air line leaves the horn. So "moving the horn" means undoing whatever holds it still and putting it on the next vehicle. The only engineering left is the mount, and that's what this guide is about.

My test unit for this setup is the Extreme Quad Train Horn for Milwaukee® 18v Battery, the 150 dB tier. It ships with the standard remote (up to 160 ft) plus a long-range remote rated up to 2000 ft, and that long-range remote is the reason it works across vehicles. On the truck I'm in the cab, on the UTV I'm in the seat, and on the boat I'm at the console. The horn can sit wherever it mounts best, and I don't need to reach it.

The system: one horn plate, a dock on every vehicle

The mistake I made first was trying to mount the horn itself directly to each vehicle, three different ways. Every swap meant re-strapping, re-aiming, and re-checking that nothing was pinching a trumpet. It took forever and it was hard on the horn.

What works is splitting the job in two:

• The horn plate. The horn gets strapped once, snugly and permanently, to a small carrier: a flat piece of aluminum or a thick HDPE cutting board with slots cut for straps. The horn never comes off this plate. The trumpets stay aimed, and the straps stay off the bells.
• The docks. Each vehicle gets its own cheap receiver that stays on that vehicle: tube clamps on the UTV cage, straps anchored to the truck bed, rail clamps on the boat. The plate clicks or clamps into whichever dock you're at.

The swap is then: pull the battery, release the plate, carry it over, dock it, click the battery back in. The docks cost a few bucks each, and you only have to aim and adjust the horn once.

Truck dock: bed rails, cleats, and cam straps

The truck is the easiest dock because the bed already has anchor points. Some trucks come with a factory bed-rail track system with sliding cleats. One common factory cleat slides along the rail, locks with a twist, and is rated to hold 110 lb. That's far more than a horn needs, and you can slide it to wherever the horn aims best. Some other trucks use bolt-in cleat plates with locking cleats that come out with a key. That's handy if you'd rather not leave anchor points out in the open.

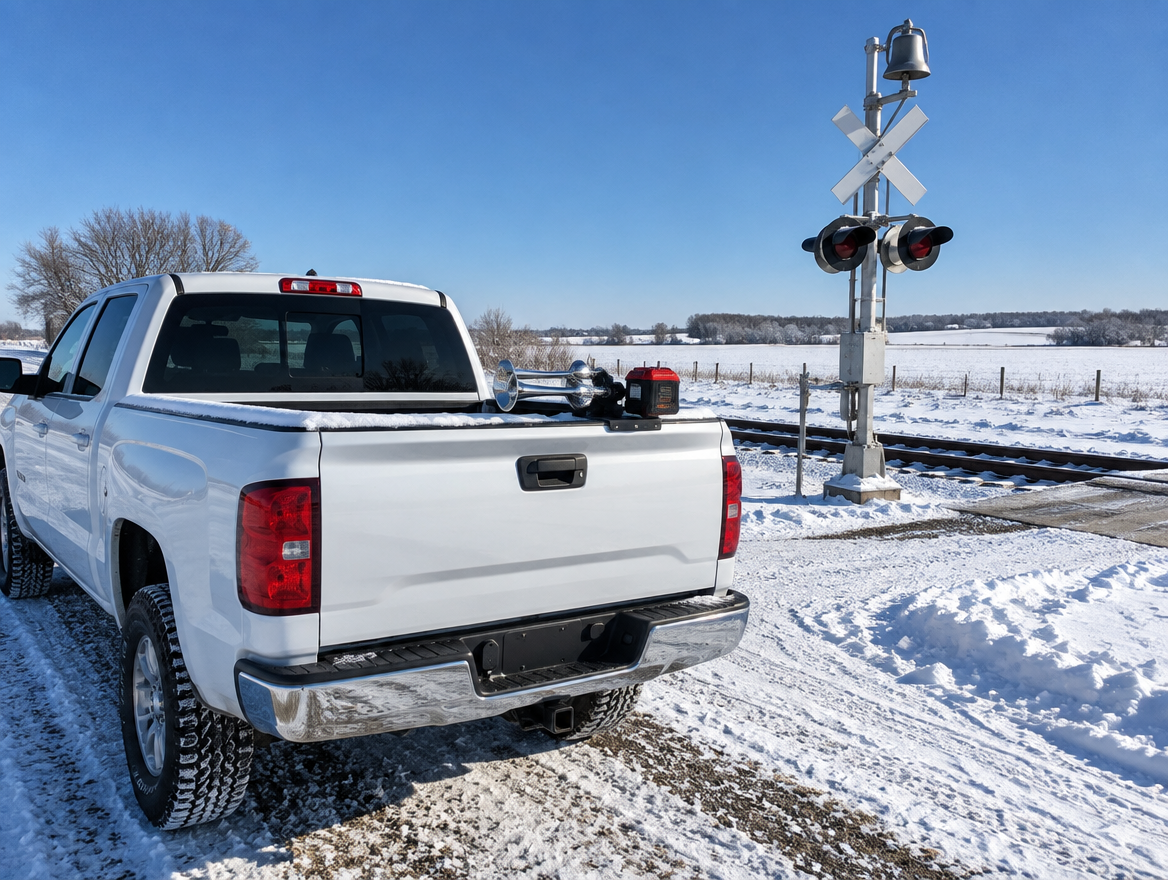

My truck dock is just two cam-buckle straps that live in the bed, hooked to the front tie-downs. The horn plate goes against the front bed wall, the straps cross over it, and I pull them snug by hand. I don't use ratchet straps on the plate for the same reason I never use them on a horn body: it's too easy to crank down and crush something. If your truck has no anchors where you need them, the strap, clamp, and magnet methods in my no-drill mounting guide all work as truck docks too.

UTV dock: tube clamps on the roll cage

Side-by-side cages make great docks because they're round tube, and round tube has a whole industry of tool-free clamps built for it. Measure your cage before you buy anything. A lot of popular UTV cages are 1.5 to 1.75 inches outside diameter, which is why so many aftermarket cage clamps are sized for exactly that range.

My pick is the rubber T-handle clamp, the kind sold for holding shovels and axes on racks. The original size holds objects 1 to 2.25 inches in diameter and is rated for a 25 lb safe working load per clamp (50 lb per pair). The clamp mounts with a single #10 bolt, so I bolted two of them to the underside of my horn plate. Now the plate snaps onto the cage bar, and I flip the T-handles to lock it. No tools, and it comes off in about five seconds.

Two cautions from the trail. Aim the trumpets forward and slightly down so rain and dust don't collect in the bells. Also make sure nothing on the plate can swing into a passenger's head space in a rollover. My full UTV train horn guide (linked at the bottom) covers where a horn belongs on a side-by-side.

Boat dock: rail clamps, and why phone mounts don't cut it

Boat rails are smaller than UTV cages. The most common round marine tubing for tops and rails is 7/8 inch or 1 inch outside diameter. The original T-handle clamp bottoms out at 1 inch, so I use the mini size on the boat. It covers 5/8 to 1-3/8 inches and is rated for 50 lb per pair. Same horn plate, just a second pair of clamps bolted next to the first. Clamp to a solid welded grab rail or bow rail, not a canvas-top bow. Those flex and swivel by design.

The obvious question is: why not a marine ball mount? Everybody's boat already has one for the fish finder. I checked. One popular tool-free rail-clamp ball base with a 1-inch ball is rated for 2 lb in standard use and just 1 lb for heavy-duty use. The maker designs its 1-inch ball size for phones, GPS units, and handheld radios. Its heavier-duty sizes are meant for larger fish finders and monitors. A metal quad-trumpet horn with a battery hanging off it is not a phone, and a boat slamming into a chop is heavy-duty use. I wouldn't trust a phone mount with a horn over open water.

One more boat note: federal navigation rules require a vessel under 12 meters to carry some means of making an efficient sound signal (33 CFR 83.33). A battery horn is a loud one, but keep your required signal device aboard anyway, and read my boat train horn guide for how I rig it and keep the pack dry.

Quick-release mount options compared

Mount type	Fits	Published rating	My verdict
Rubber T-handle clamp (original)	1–2.25 in tube: UTV cages, racks	25 lb per clamp	Best UTV dock
Rubber T-handle clamp (mini)	5/8–1-3/8 in: boat rails	50 lb per pair	Best boat dock
Factory bed-rail sliding cleat + cam straps	Trucks with a rail track system	110 lb per cleat	Best truck dock
Rail-clamp ball base, 1 in ball	Rails up to 2.2 in	2 lb standard, 1 lb heavy duty	Too light for a horn
Magnet base	Flat bare steel only	Varies; drops sharply on vertical surfaces	Farm and trailer use only

My 60-second swap routine

1. Pull the battery first. A horn with a pack on it can go off if you bump the trigger while you carry it. Do it next to someone's ear once and you won't do it twice.
2. Release the plate. Flip the clamp handles or pop the cam buckles. The dock stays on the vehicle.
3. Dock it on the next vehicle. Check that the trumpets face open air, not a windshield or a passenger.
4. Click the battery in and test with the remote. Do a short test blast before you roll, with ear protection on.
5. Don't leave the pack on overnight. The manufacturer says to disconnect the battery if you won't use the horn for more than 5 hours, because the remote receiver draws standby power.

If you're weighing whether to mount it at all or just carry it, I broke down that tradeoff in my handheld-vs-mounted guide, linked below. The short version: the plate system gives you both. Pull the battery and the plate, and it's a handheld horn again.

Any horn in the lineup works on a plate. The Dual is the lightest and easiest on smaller clamps, and the quads carry more trumpet. Browse the full set of Train Horns for Milwaukee® M18 Battery to match one to your heaviest-use vehicle.

FAQ

Can I leave the horn plate docked on the vehicle between trips?

You can, but take the battery with you. It stops standby drain from the remote receiver and keeps the most expensive part out of reach. Locking cleats or a cable lock through the plate help against theft.

Can I mount it under the hood so it's hidden?

No. The manufacturer specifically warns against under-hood mounting because of the heat. Engine-bay heat is also rough on lithium packs. Keep the plate in open air: the bed, the cage, or the rail.

Do I need a different remote for each vehicle?

No. The remote is paired to the horn, not the vehicle, so it travels with the plate. I keep the long-range remote on a lanyard so it doesn't stay behind in the truck.

Will rubber clamps scratch a painted cage or a polished rail?

The rubber is what grips, so there's no metal-on-metal contact. I still wipe grit off the tube before clamping, because sand trapped under any clamp acts like sandpaper.

Loud is a feature — install it right. Build the plate once, put a dock on everything you drive, and the horn goes wherever you go. — Cole
