Most people who fire a train horn for the Milwaukee® 18v battery have never seen what's behind the trigger. I have — I've had these apart on my bench more times than I can count, and the guts are simpler than you'd guess: a compressor, a valve, a receiver board, and four trumpets. Here's what each part actually does, and which ones you should ever expect to touch.
The Four Systems Inside the Housing
A traditional 12V truck train horn kit spreads its hardware all over the vehicle: an electric compressor, an air tank somewhere between 0.8 and 2.6 gallons pumped to roughly 120–160 psi, a pressure switch, a solenoid valve, a safety blow-off valve, a gauge, and yards of air line and wiring connecting it all. A battery-powered train horn shrinks that parts list down to what fits in one drill-style housing:
- The compressor (pump) — makes the air, on demand, with no storage tank.
- The valve and trigger — the gate that decides when air hits the trumpets.
- The RF receiver — the little board that listens for your wireless remote.
- The trumpets — four horns of different lengths bolted to the front, where the noise is actually made.
The fifth piece — the power plant — isn't inside the housing at all. It's the Milwaukee® M18™ battery you click onto the bottom. If the whole drill-style-horn concept is new to you, start with my explainer on what a train horn gun actually is, then come back for the teardown.
Want to see these parts laid out for real instead of taking my word for it? The DIY Quad Train Horn for Milwaukee® 18v Battery ships unassembled — the four-trumpet assembly, the compressor, and the harness with the remote receiver arrive as separate pieces you bolt together yourself. It's the closest thing to an exploded diagram you can hold.
The Compressor: An Air Source With No Tank
The heart of the horn is a compact electric compressor driven by a motor, spun directly off the M18™ pack. When you pull the trigger, the motor spins up and the pump pushes air straight into the trumpets in real time. There is no reservoir — the air is made the instant you ask for it.
Compare that with a tank system. On a 12V kit, the compressor's only job is refilling the tank, and the tank is what feeds the horns — figure about 2 seconds of blast time per gallon of stored air before you're waiting on a refill. A pressure switch cycles the compressor on and off to hold tank pressure, and on those systems the pressure switch is the single most common part to fail. The battery-powered design deletes the tank, the pressure switch, the blow-off valve, and the gauge in one move — four failure points gone because there's no stored pressure to manage.
The trade-off is honest: a tank can dump a huge volume of air at once, which is how locomotive horns running at 125–140 psi get their chest-thumping punch. A pump-direct horn counters with instant response and zero maintenance. On the Extreme Quad Train Horn for Milwaukee® 18v Battery, that pump pushes the four trumpets to 150 dB with no delay between press and blast — and I've never once drained water out of it, because there's no tank to collect condensation.
The Valve and Trigger: What Actually Fires the Blast
Between the pump and the trumpets sits the flow-control side: the valve hardware and the trigger switch. On a tank kit this is a standalone solenoid valve — an electrically operated gate mounted between the tank and the horns that snaps open when 12V hits it. It's a directional part; plumb it backwards and the horn won't fire.
Inside a battery horn, the same job is handled more simply. The trigger is an electrical switch: pull it, and it powers the motor and opens the air path in one motion. Fire it from the remote instead, and the receiver board closes that same circuit for you. Either way, the moment air can flow, sound happens — there's no pressure to build first.
Worth knowing before you reach for a screwdriver: the pump, valve, and receiver live inside the sealed housing, and on most brands opening it up is warranty territory, not a user-serviceable area. I break down exactly what you can and can't swap in my train horn replacement parts guide.
The Receiver: The 433 MHz Brains Behind the Remote
The receiver is a small radio board wired in parallel with the trigger. Remotes of this type typically operate at 433.92 MHz using learning-code (EV1527-style) pairing — the receiver memorizes your specific fob's code, so your neighbor's garage remote won't set off your horn, and a replacement fob can be paired with a learn button instead of soldering.
On the Extreme tier you get two fobs: a standard remote good for up to 160 feet running on CR2016 coin cells, and a long-range remote rated up to 2,000 feet running on a 9V battery. When range starts shrinking, that's the fob battery dying — not the receiver.
One habit worth building: the receiver listens for the remote whenever an M18™ pack is clicked in, which means a small standby draw. Pull the battery off when the horn goes into storage and the drain drops to zero.

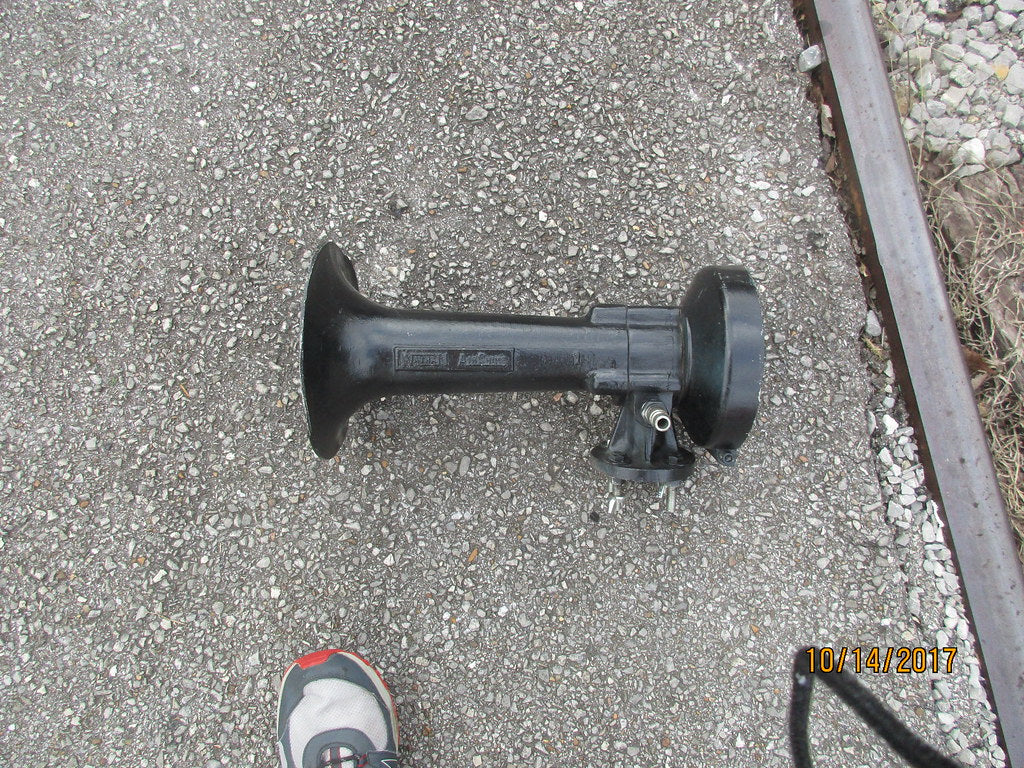

The Trumpets and Diaphragms: Where the Sound Is Actually Made
Everything upstream just moves air. The sound itself is born in the trumpets — specifically at a thin disc called the diaphragm seated in the throat of each one. Pressurized air forces the diaphragm off its seat, air escapes, the diaphragm snaps back, and the cycle repeats hundreds of times per second. Those pulses are the tone, and the flared trumpet bell amplifies them as the sound waves expand from the narrow throat to the wide mouth.
Each trumpet's length and diameter set its pitch — real locomotive horns use trumpets in the neighborhood of 10–20 inches of effective length to land in that signature 250–350 Hz range. That's why a quad horn uses four different trumpet sizes: four pitches sounding at once make a chord, and a chord is what your brain recognizes as “train.” The Extreme model runs four powder-coated metal trumpets in staggered sizes for exactly this reason.
Two practical notes from my bench. First, trumpets are the one component you're meant to touch: they unscrew, and the Extreme Trumpets Upgrade for Milwaukee® 18v Battery swaps them for larger bells rated for 40% more output and a lower tone. Second, if your horn ever comes out squeaky or higher-pitched than normal, that's moisture sitting on a diaphragm — a couple of hard blasts usually blows the water clear.
The M18™ Battery Interface: The Power Plant You Already Own
The battery bay on the bottom of the housing is a standard M18™-pattern mount — any Milwaukee® M18™ pack clicks in, from a compact 2.0Ah up to the big High Output bricks. And honestly, the pack is the most sophisticated component in the whole rig: standard M18™ packs are built from 18650 lithium cells, while High Output packs run larger 21700 cells rated as high as 35 amps of continuous discharge per cell. That discharge headroom is why a cordless-tool battery can feed a compressor motor that would brown out a cigarette-lighter socket.
Because the pack is external and standardized, it's also the easiest “repair” you'll ever do — a tired battery swaps out in two seconds, and the same pack goes back to running your drill on Monday. The housing itself is water-resistant, not waterproof, so treat the battery interface like you'd treat any cordless tool: fine in drizzle, not for dunking.
FAQ
Is there an air tank inside the housing?
No. A battery-powered train horn generates air on demand with its internal pump. That's why there's nothing to drain, no pressure to wait on, and no pressure switch to fail — and it's the biggest single difference from 12V truck kits.
Can I open the housing to service the pump or valve?
You can physically, but you usually shouldn't — on most brands, cracking the sealed housing voids the warranty, and the internals aren't sold as spare parts anyway. If the pump or valve dies inside the warranty window, that's a warranty claim, not a bench project.
Which parts am I actually meant to replace myself?
Three things: the trumpets (they unscrew, and upgrades exist), the remote batteries (CR2016 coin cells in the standard fob, a 9V in the long-range fob), and the M18™ pack itself. Everything else is designed to live and die as one sealed unit.
What's the difference between a Dual, Quad, and Extreme internally?
Same architecture — pump, valve, receiver — with different trumpet counts and output tuning. The Dual tier runs two trumpets at up to 130 dB, the Quad runs four at up to 140 dB, and the Extreme pushes four larger staggered trumpets to 150 dB.
Why does my horn sound weak or squeaky sometimes?
Usually one of two things: a low battery starving the pump motor, or moisture sitting on a trumpet diaphragm after rain or a wash. Swap in a charged pack first; if the tone is still off, fire a few hard blasts to clear the water out.
Bottom line: four systems, one housing, zero plumbing. Know which parts are yours to touch — trumpets, fob batteries, the pack — and leave the sealed guts alone. Loud is a feature — install it right. — Cole
