I have built the drag-it-around portable train horn rig — 12V battery, compressor, air tank, solenoid, all strapped into a box — and I also keep a Train Horn for Milwaukee® 18v Battery behind the seat of my F-250. Before you burn a weekend plumbing your own 12-volt rig, here is the honest math on amps, pounds, dollars of parts, and how long you stand around waiting for a tank to fill.
What a DIY Portable 12V Rig Actually Takes
When people say they want a "portable" train horn, they usually picture a box they can carry to a tailgate or a race. To build one at 12 volts, you need every piece of an onboard air system, minus the truck: a 12V battery (usually a sealed AGM), a 12V air compressor, an air tank, a pressure switch, a solenoid valve, the trumpets themselves, air line and fittings, heavy wire with a fuse, and something to bolt it all into. None of those parts is optional. Skip the tank and full-size trumpets go quiet; skip the pressure switch and you are babysitting a toggle so the compressor does not over-pressurize the tank.
The ceiling of this hobby is real. On Train Horn Forums, one builder documented a rolling-wagon rig with dual Viair 485C compressors, two five-gallon tanks, and a genuine locomotive-style K3 horn — and calculated the compressors alone would pull close to 50 amps at 12 volts. Most of that thread is him hunting for a battery that can feed the thing: standard lead-acid is cheap but heavy, AGM costs more, and lithium was priced out of the build entirely. That is the pattern I see in every portable 12V build, including my own: the horn is the easy part. The power supply is the project.
The Amp Problem: 12 Volts Is Thirsty
Air compressors are the hungriest thing most people ever wire at 12 volts. Pulling from published spec sheets: a Viair 275C — the small compressor sold in 1.5-gallon air-source kits — draws up to 20 amps. A Viair 400C draws about 26 amps. Run two big 485C units like that forum wagon and you are near 50 amps continuous while the tank fills.
Those numbers decide everything else in the build. At 20 to 50 amps you need thick copper, real ring terminals, and an inline fuse sized to the compressor — alligator clips and lamp cord will heat up and drop voltage. And the small batteries people want to use for portability get worked hard: a common 12V 18Ah AGM asked to deliver 20-plus amps is running above a 1C discharge rate, so voltage sags, the compressor slows, and fill times stretch as the battery drains.
An M18™-compatible train horn sidesteps the whole problem. The Milwaukee® M18™ battery is built to feed high-draw power tools, it delivers 18 volts instead of 12, and the horn's direct-drive compressor is matched to the pack — there is no tank to fill, no pressure switch to wire, and no fuse block to size. You click the pack on and it works.
Put the Two on a Scale
Here is the part nobody puts in their build thread until the rig is finished: the weight. These are manufacturer-published numbers for the common parts of a single-compressor portable build.
| Component | Published weight |
|---|---|
| 12V 18Ah AGM battery | 11–12 lbs |
| Viair 275C compressor | 5.2 lbs |
| Viair 2.5-gallon air tank | 14.05 lbs (23.5 in. long) |
| Trumpets, solenoid, fittings, wiring, enclosure | several lbs more |
| Realistic rig total | 30–40+ lbs |
Even Viair's own compact 1.5-gallon air-source kit — the tank and 275C compressor pre-assembled — has a net weight of 15.65 lbs before you add a battery, trumpets, valve, or box. Meanwhile a Milwaukee® M18™ XC5.0 battery weighs about 1.6 lbs per retailer spec listings, and the complete horn it powers is a one-hand carry. My wagon rig stays in the shop because moving it is a chore. The battery horn rides behind the seat because it isn't.
The one I actually grab is the Extreme Quad Train Horn for Milwaukee® 18v Battery — four metal trumpets rated at 150+ dB with a wireless remote that reaches out to 2,000 ft, and the whole thing weighs less than the AGM battery alone in a 12V build.
Wait Time and Duty Cycle
A tank rig cannot honk until the tank is full. The stock pressure switch on that 1.5-gallon Viair kit kicks the compressor on at 90 PSI and off at 120 PSI, so every long blast session becomes a rhythm of honk, wait, honk, wait. The 275C is rated for a 25% duty cycle at 100 PSI with a maximum run time of 15 minutes — push it harder on a hot day and thermal protection shuts it down until it cools. On my scratch-built rig, the compressor recharge pause is the soundtrack between blasts.
The train horn for the Milwaukee® 18v battery fires the moment you pull the trigger or hit the remote, because the compressor drives the trumpets directly — there is no stored air to deplete and no tank to refill. I have run event days on a single 5.0Ah pack and the limiting factor was my ears, not the hardware. Wear hearing protection; anything in the 130–150 dB range will ring your ears from an arm's length away.
Charging, Storage, and Upkeep
The 12V rig adds a second charging ecosystem to your life. An AGM battery needs its own 12V charger and it self-discharges sitting on a shelf, so a rig you only use monthly needs a maintainer or it greets you half-dead. The air side needs attention too: drain moisture from the tank, and chase leaks at every fitting with soapy water, because a slow leak means the compressor cycles just to hold pressure.
The M18-compatible horn borrows the charger you already own. The same charger that runs your drill packs tops off the horn's battery, a spare pack in the truck is your backup plan, and there is no tank to drain and no fittings to re-tape. Off-season storage is: take the pack off, put it on the shelf.
When the DIY 12V Rig Still Wins

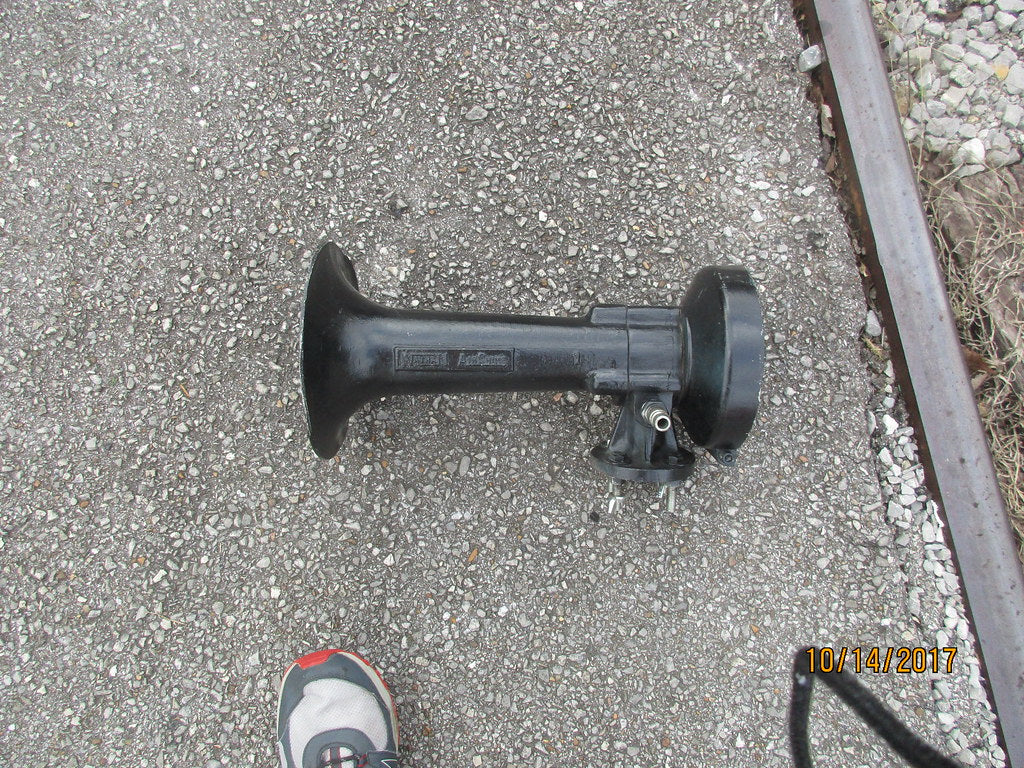

I will be straight about where the scratch build earns its weight. If your goal is genuine locomotive hardware — a real cast K-series horn with that exact railroad chord — no battery-powered horn matches the sheer air volume those trumpets swallow, and a multi-gallon tank rig is the only way to feed them. And if you simply love fabricating, the wagon build is a satisfying project: mine taught me more about air systems than any kit ever would.
If you want the wrenching without the plumbing, there is a middle path: the DIY Quad Train Horn for Milwaukee® 18v Battery is a boxed kit with matched trumpets, a direct-drive compressor, and a wireless remote that you assemble with a screwdriver — no tank, no air line, no 50-amp wiring.
Loud is a feature — install it right. — Cole
FAQ
Can I skip the air tank in a 12V portable build?
Not with full-size trumpets. A lone 12V compressor plumbed straight to big horns cannot move enough air on its own — the tank is what delivers the blast. Battery-powered horns get away without a tank because their trumpets and direct-drive compressor are engineered as a matched set.
How many amps does a DIY portable train horn rig draw?
Per published specs, a single small compressor like the Viair 275C draws up to 20 amps at 12 volts, a 400C about 26 amps, and documented dual-compressor forum builds calculate close to 50 amps. Size your wire, fuse, and battery for the number on your compressor's spec sheet.
What battery should a 12V rig use?
Most builders land on a sealed AGM because it can be run in any orientation and tolerates the load better than a bargain flooded battery — at roughly 11–12 lbs for an 18Ah unit. Lithium 12V batteries cut the weight but cost enough that forum builders routinely rule them out.
Is a train horn for the Milwaukee® 18v battery as loud as a tank rig?
The tiers run from 130 dB dual-trumpet models to 150+ dB on the Extreme quad — squarely in aftermarket train horn territory. A multi-gallon tank feeding real locomotive trumpets can sustain longer, fuller blasts, but pound for pound and dollar for dollar, the battery horn delivers far more noise per unit of hassle.
